Application

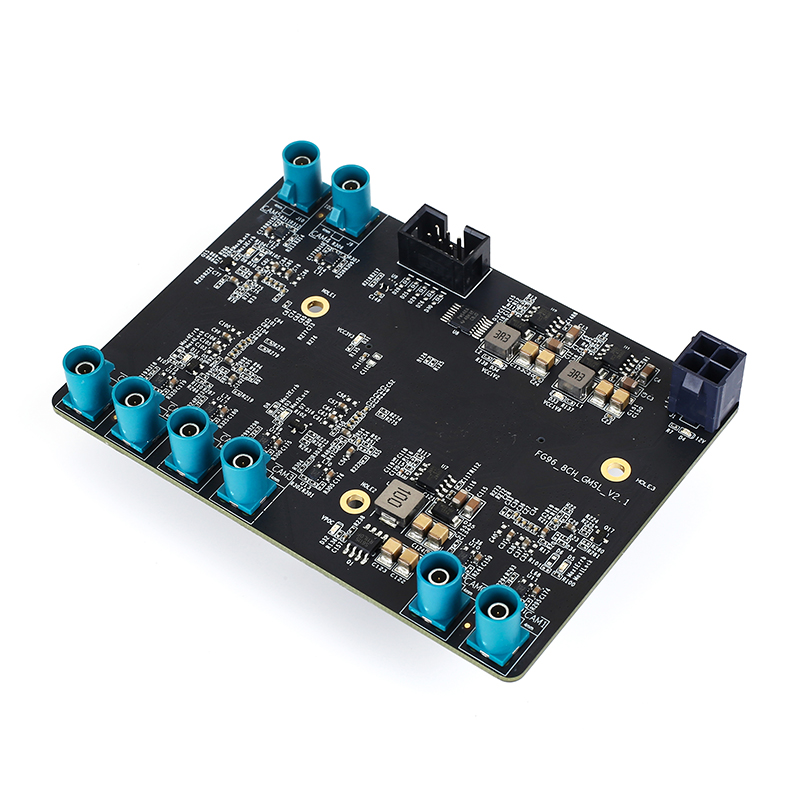

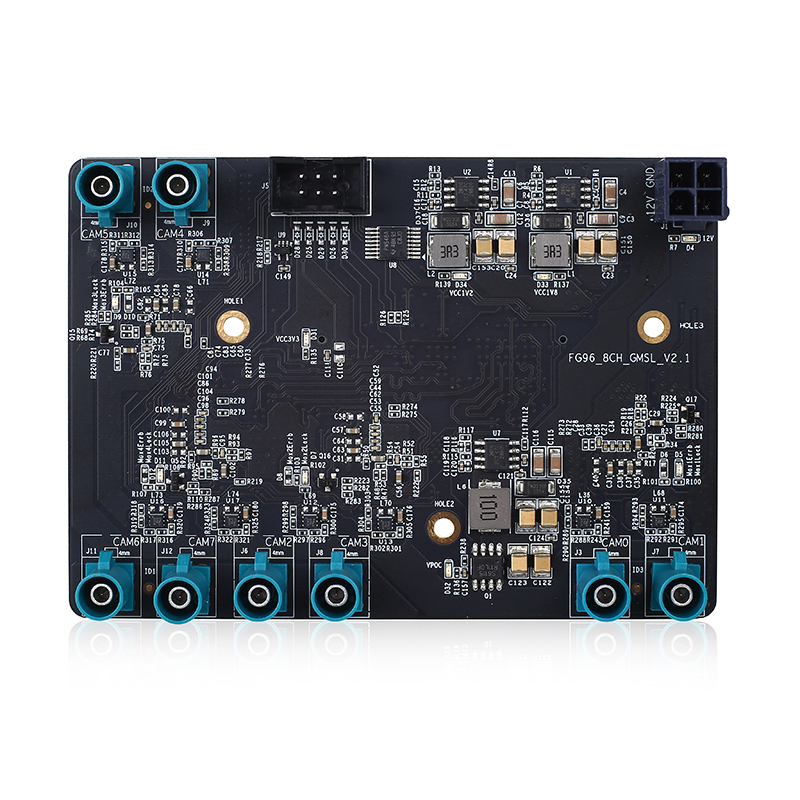

The FG96 GMSL camera platform of Fangzhu Technology is anexpansion board that allows up to 8 cameras to be connected to Jetson ® AGX Orin ™/ Xavier ™ Module, which works withNVIDIA Jetson ® AGX Orin ™/ Xavier ™ Thedevelopment suite is fully compatible. Since many different types of GMSLcameras are available, FG96 can work adaptively at different frequencies, i.e.,it is compatible with GMSL1 and GMSL2 protocol interfaces through softwareconfiguration. The power supply of GMSL camera is provided by PoC (Power overCoax), so all data, control signals and power are sent through a 50 ohm coaxialcable, which makes the cable routing of the camera flexible and easy to installin automobile applications.
Specifications
Product Features and Specifications |
Size | 104x74mm |
Weight | 50g |

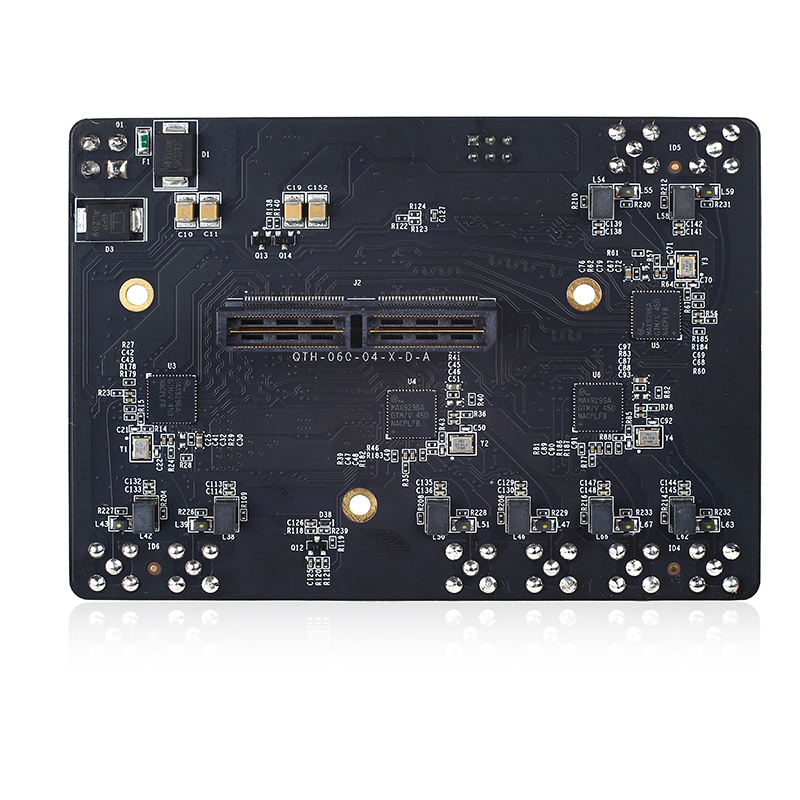

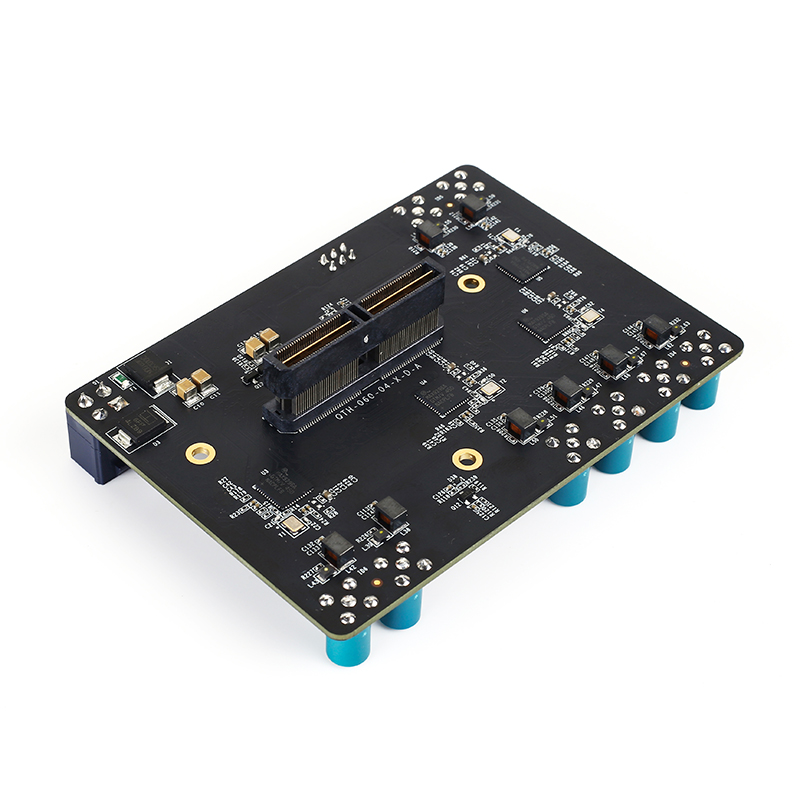

Jetson® AGX Orin™/Xavier™ Devkit | 1x120Pin High density connector Camera expansion connected to NVIDIA Jetson via 120Pin “Camera Expansion Header” |
(GMSL) Camera Inputs | 8 channels camera(GMSL2/GMSL1) |
Deserializer | MAXIM(ADI) MAX9296A |
MIPI Output MIPI | Each deserializer is connected to a 4-Lane MIPI CSI-2 v1.3 (16 Lanes in total) |
Camera Input Connectors | 8x MATE-AX FAKRA Connector |
PoC (Power-Over-COAX) | 8 cameras powered by 12V PoC |
Power | External 12V power supply |
Operating Temperature | -20°C to +85°C |
Warranty and Support | One year warranty and technical support |
Verified camera list
Brand | Sensor(YUV) | Note |
Sunny | OX08B40 |
|
Intel Realsense | D457 |
|
iRay | M6 |
|
Pilot640 |
|
Guide Infrared | 红外IR |
|
Whetron | OSX019 |
|
Desay | OX01FC |
|
OSX019 |
|
Sensing | AR0147 |
|
AR0231 |
|
OX03C |
|
IMX390 |
|
ISX031 |
|
OX05B |
|
IMX490 |
|
AR0820 |
|
OX08BC |
|
Leopard Imaging | IMX490 |
|
IMX390 |
|
AR0233 |
|
AR0820 |
|
Joctech | OX08BC |
|
IMX390 |
|
OX01FC |
|
LJI (LiJing-tech) | IMX390 |
|
ISX031 |
|
OX08B40 |
|
Aili-Light | OSX019 |
|
OX03C |
|
ISX031 |
|
ISX021 |
|
OX08B40 |
|
Hirain | OV2311 |
|
Accessories
1. GMSL/FPDLink Camera：
https://item.taobao.com/item.htm?spm=a1z10.3-c-s.w4002-22505135965.19.247149fepLV0bv&id=684127192961
1M | 2M | 3M | 5M | 8M |
AR0147 | ISX021 | ISX031 | IMX490 | OX08B |
OX01F | OX03C |
| OX05B | AR0820 |
ISX019 | IMX390 |
|
|
|
AR0143 | AR0231 |
|
|
|
SC120AT | AR0233 |
|
|
|
AR0144 | OV2311 |
|
|
|
|
|
|
|
|
2. GMSL/FPDLink Coaxial harness：
https://item.taobao.com/item.htm?spm=a1z10.3-c-s.w4002-22505135965.21.247149fepLV0bv&id=684821038122
Coaxial harness | Length(m) | Waterproof | Interface |
Yes | 2 | Yes | GMSL or FPDLink |
Yes | 3 | Yes | GMSL or FPDLink |
Yes | 5 | Yes | GMSL or FPDLink |
Yes | 7 | Yes | GMSL or FPDLink |
Yes | 8 | Yes | GMSL or FPDLink |
Yes | 10 | Yes | GMSL or FPDLink |
Yes | 12 | Yes | GMSL or FPDLink |
Yes | 16 | Yes | GMSL or FPDLink |
Yes | 0.5 | Yes | Mini Fakra Four in one |
Mass customization | 1-16 | Yes | GMSL or FPDLink |
