Application

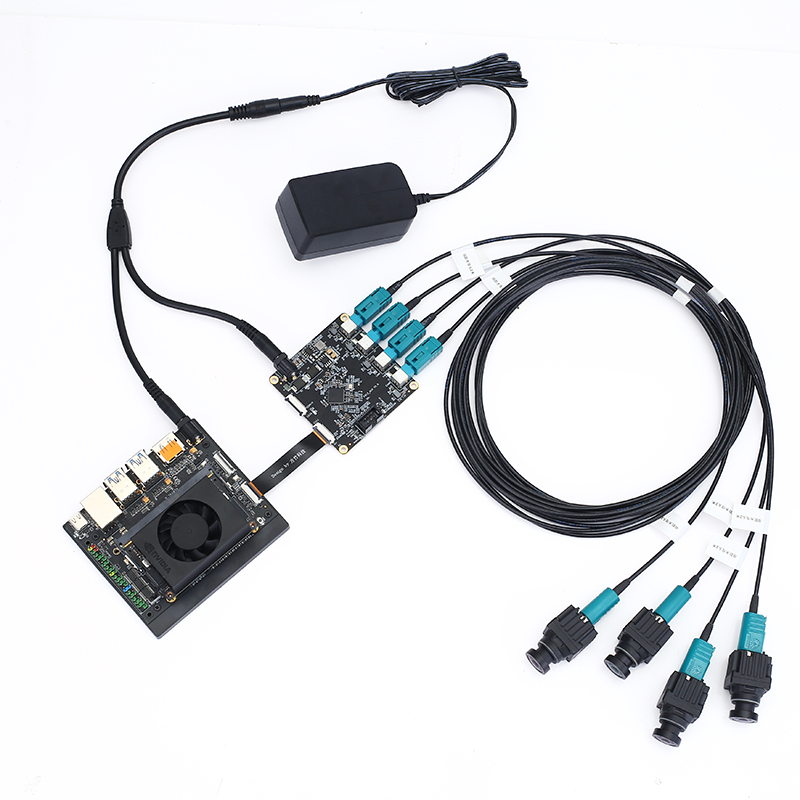

The FG12-4CH GMSL camera platform of Fangzhu Technology is anexpansion board that allows two cameras to be connected to Jetson ® Orin NX/Orin Nano development kit. Since many different types of GMSL camerasare available, FG12-4CH can work adaptively at different frequencies, that is,it is compatible with GMSL1 and GMSL2 protocol interfaces through softwareconfiguration. The power supply of GMSL camera is provided by PoC (Power overCoax), so all data, control signals and power are sent through a 50 ohm coaxialcable, which makes the cable routing of the camera flexible and easy to installin automobile applications.
Specifications
Product Features and Specifications |
Size | 80x80mm |
Weight |
|
Jetson® Orin NX/ Orin Nano |
|
(GMSL) Camera Inputs | 4 channels camera(GMSL2/GMSL1) |
Deserializer | MAXIM(ADI) MAX96712 |
MIPI Output MIPI | Each deserializer is connected to a 4-Lane MIPI CSI-2 |
Camera Input Connectors | 4x MATE-AX FAKRA Connector |
PoC (Power-Over-COAX) | 4 cameras powered by 12V PoC |
Power | External 12V-24V power supply |
Operating Temperature | -20°C to +85°C |
Warranty and Support | One year warranty and technical support |
Verified camera list
Brand | Sensor(YUV) | Note |
Sunny | OX08B40 |
|
Intel Realsense | D457 |
|
iRay | M6 |
|
Pilot640 |
|
Guide Infrared | 红外IR |
|
Whetron | OSX019 |
|
Desay | OX01FC |
|
OSX019 |
|
Sensing | AR0147 |
|
AR0231 |
|
OX03C |
|
IMX390 |
|
ISX031 |
|
OX05B |
|
IMX490 |
|
AR0820 |
|
OX08BC |
|
Leopard Imaging | IMX490 |
|
IMX390 |
|
AR0233 |
|
AR0820 |
|
Joctech | OX08BC |
|
IMX390 |
|
OX01FC |
|
LJI (LiJing-tech) | IMX390 |
|
ISX031 |
|
OX08B40 |
|
Aili-Light | OSX019 |
|
OX03C |
|
ISX031 |
|
ISX021 |
|
OX08B40 |
|
Hirain | OV2311 |
|
Accessories
1. GMSL/FPDLink Camera：
https://item.taobao.com/item.htm?spm=a1z10.3-c-s.w4002-22505135965.19.247149fepLV0bv&id=684127192961
1M | 2M | 3M | 5M | 8M |
AR0147 | ISX021 | ISX031 | IMX490 | OX08B |
OX01F | OX03C |
| OX05B | AR0820 |
ISX019 | IMX390 |
|
|
|
AR0143 | AR0231 |
|
|
|
SC120AT | AR0233 |
|
|
|
AR0144 | OV2311 |
|
|
|
|
|
|
|
|
2. GMSL/FPDLink Coaxial harness：
https://item.taobao.com/item.htm?spm=a1z10.3-c-s.w4002-22505135965.21.247149fepLV0bv&id=684821038122
Coaxial harness | Length(m) | Waterproof | Interface |
Yes | 2 | Yes | GMSL or FPDLink |
Yes | 3 | Yes | GMSL or FPDLink |
Yes | 5 | Yes | GMSL or FPDLink |
Yes | 7 | Yes | GMSL or FPDLink |
Yes | 8 | Yes | GMSL or FPDLink |
Yes | 10 | Yes | GMSL or FPDLink |
Yes | 12 | Yes | GMSL or FPDLink |
Yes | 16 | Yes | GMSL or FPDLink |
Yes | 0.5 | Yes | Mini Fakra Four in one |
Mass customization | 1-16 | Yes | GMSL or FPDLink |
