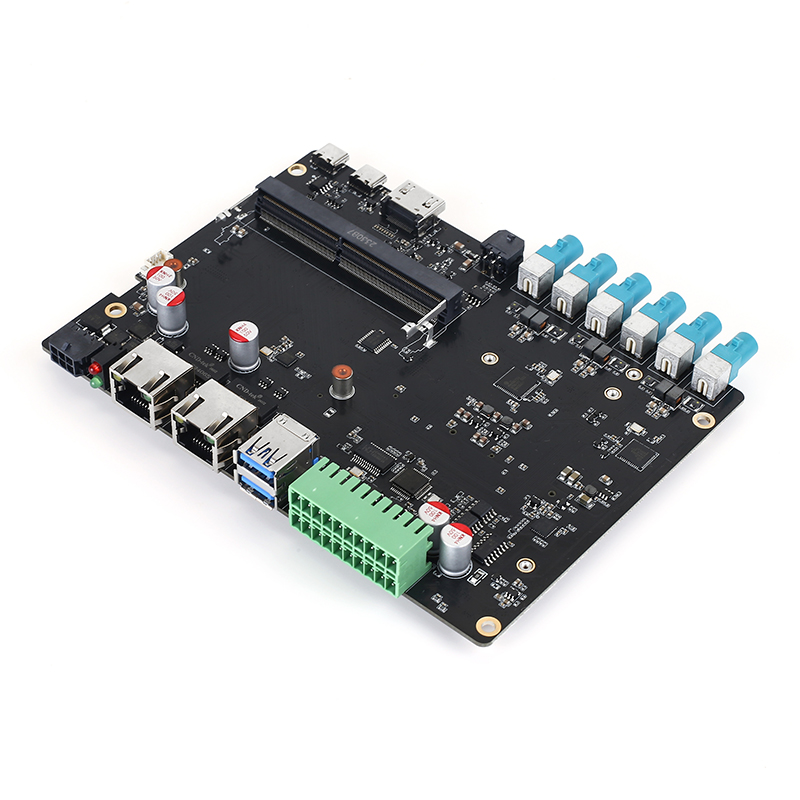

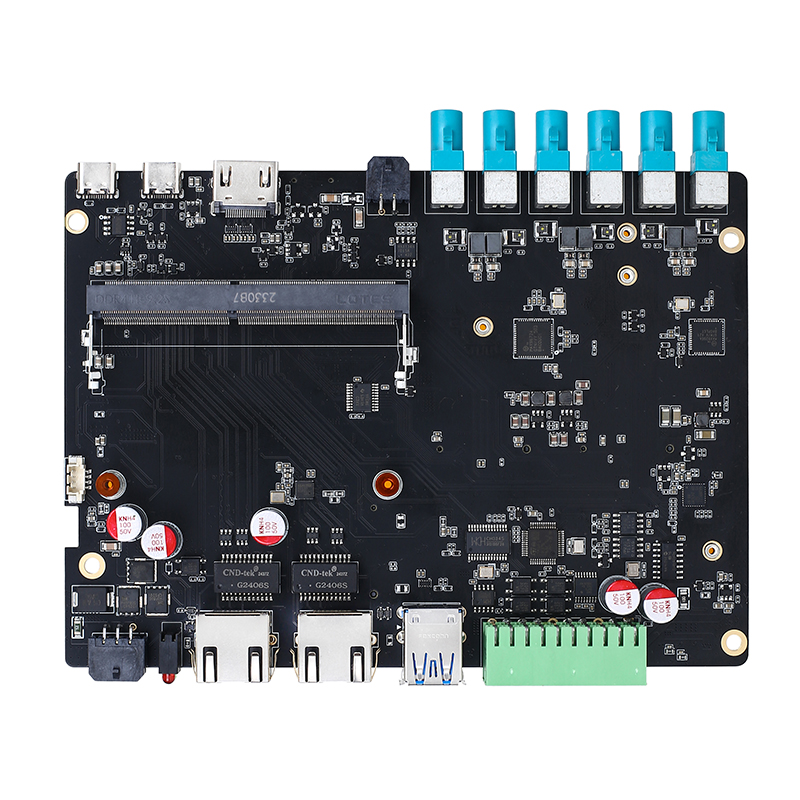

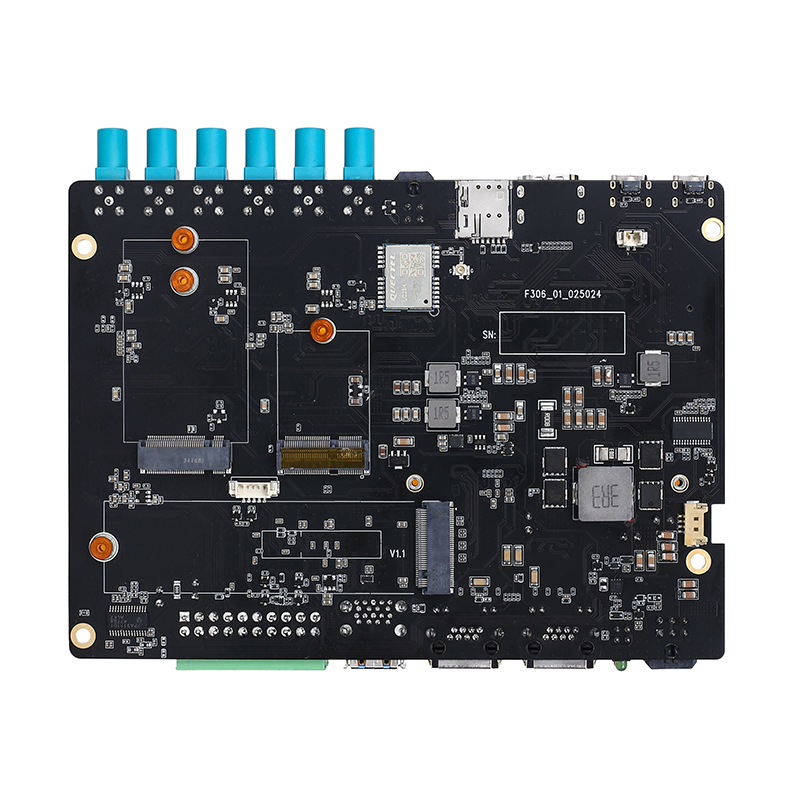

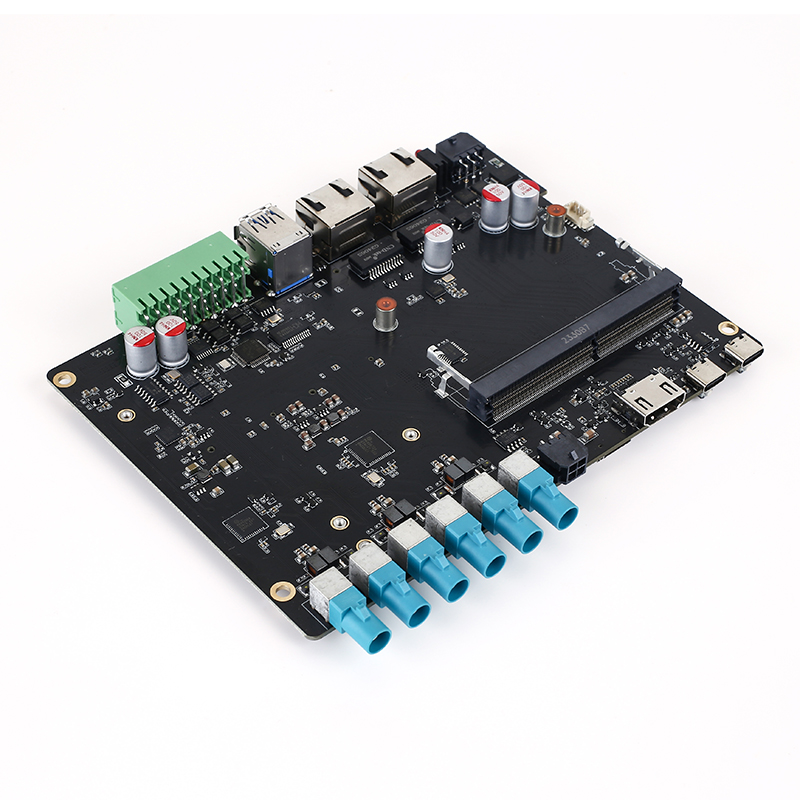

(MAX9296+MAX96712)Orin NX/Nano carrier board with 6 GMSL1/2 channels

F305 supports Nvidia Jetson Orin NX/Orin Nano/Xavier NX/Nano/TX2-NX Devkit (official and Subkit)
Model:F305
Interfaces:GMSLx6
Product Detail

Buy product

1.    Taobao Mall

click buy1.png

https://item.taobao.com/item.htm?spm=a1z10.3-c-s.w4002-22505135965.14.29e949fe9aULi7&id=674287921888

2.    Emailxiaoxianbang@fangzhutech.com

3.    Mobile/Wechat/WhatsApp/Skype:+8618611588103


Application

       F305 is for NVIDIA ® Orin NX ™ The computing platform carrier designed by series modules canalso be compatible with Orin Nano ™/ Xavier NX ™/   Nano ™/   TX2-NX ™ Module, which has a wide range of IOinterface types, including 2-way gigabit RJ-45, 3-way CAN bus, mini PCIeexpandable 4G/WIFI, 6-way GMSL2 compatible with GMSL1 camera, etc. It has anultra long MTBF stable operation capability, and is widely used in logistics,security, low-speed self driving, retail and other industries. The terminalproducts are rich in form, which can be used in robots, unmanned aerialvehicles, unmanned distribution vehicles, unmanned ships, intelligent lawenforcement equipment, etc.


Specifications


Type

Items

Description

SOM

processor

NVIDIA Jetson Xavier NX (21TOPS)

Compatible with Orin NX/ Orin Nano/ Nano/ TX2-NX Devkit

384 core NVIDIA Volta ™   GPU   integrated 48TensoRT core

6-core NVIDIA Carmel ARM ®   V8.2   1.4GHz 64 bit

LPDDR

8GB/16GB 128位LPDDR4x   1.6GHz w/ ECC

HDD

16G eMMC5.1Built in module

Network interface

Wired network

Support 1x Gigabit RJ45

Wired network

Support 1x Gigabit RJ45

WIFI

WIFI 2.4G/5GHz compatible with BT

4G

EC20(miniPCIe

5G

RM500U-CN(M.2

GNSS

L76K module supports GPS/Beidou-2.0M positioning accuracy

External function interface

M.2

Support M.2-Key M SSD support, length 2280

USB

2xUSB3.0 compatible with 2.0 TYPE-A stack (USB Hub    chip)

1x TYPE-C USB 2.0 (support OTG, download interface)

1x TYPE-C Debug (USB-UART Debug interface)

Camera

2-way GMSL FAKRA (1 MAX9296)

4-way GMSL FAKRA (1 MAX96712)

Support a set of 4Lane CSI interfaces

20Pin Header

2xDI 3.3V TTL (with isolation)

2xDO 3.3V TTL (with isolation)

2x CAN_ H/L (with isolation)

1x RS232 (DB9)

1x RS485 (with isolation, DB9)

1x synchronization signal (input to GMSL deserializer)

T

T card interface, supporting hot plug

RTC

1x RTC

FAN

4-PinFan connector

Display interface

HDMI2.0

Button

Reset

Recover

LED

Power Led

Status indicator

SIM card

Push-pull

PCB spec

PCB layer

6

Power supply

Power on

Power on and start automatically

Power off

Power off delayed shutdown is not supported

Power supply

9~36V DC

power waste

≤30W

Overall configuration

Size


dissipate heat

Core board with fan, active cooling

Shell

No

Operating temperature&humidity

working temperature

-20℃   ~ +65℃



Verified camera list


Brand

Sensor(YUV)

Note

Sunny

OX08B40


Intel Realsense

D457


iRay

M6


Pilot640


Guide Infrared

Infrared IR


Whetron

OSX019


Desay

OX01FC


OSX019


Sensing

AR0147


AR0231


OX03C


IMX390


ISX031


OX05B


IMX490


AR0820


OX08BC


Leopard Imaging

IMX490


IMX390


AR0233


AR0820


Joctech

OX08BC


IMX390


OX01FC


LJI (LiJing-tech)

IMX390


ISX031


OX08B40


Aili-Light

OSX019


OX03C


ISX031


ISX021


OX08B40


Hirain

OV2311




Accessories

1. GMSL/FPDLink Camera

click buy1.png

https://item.taobao.com/item.htm?spm=a1z10.3-c-s.w4002-22505135965.19.247149fepLV0bv&id=684127192961


1M

2M

3M

5M

8M

AR0147

ISX021

ISX031

IMX490

OX08B

OX01F

OX03C


OX05B

AR0820

ISX019

IMX390




AR0143

AR0231




SC120AT

AR0233




AR0144

OV2311











2.   GMSL/FPDLink Coaxial harness

click buy1.png

https://item.taobao.com/item.htm?spm=a1z10.3-c-s.w4002-22505135965.21.247149fepLV0bv&id=684821038122


Coaxial harness

Lenghth(m)

Waterproof

Interface

Yes

2

Yes

GMSL   or FPDLink

Yes

3

Yes

GMSL   or FPDLink

Yes

5

Yes

GMSL   or FPDLink

Yes

7

Yes

GMSL   or FPDLink

Yes

8

Yes

GMSL   or FPDLink

Yes

10

Yes

GMSL   or FPDLink

Yes

12

Yes

GMSL   or FPDLink

Yes

16

Yes

GMSL   or FPDLink

Yes

0.5

Yes

Mini   Fakra Four in one

Mass   customization

1-16

Yes

GMSL   or FPDLink
